| 브랜드 이름: | DY |
| 모델 번호: | DB1.5-3.5A |
| MOQ: | 1 Set |
| 가격: | USD800-3000/Set |
| 지불 조건: | T/T, D/P, Credit card |
| 공급 능력: | 1000-20000 sets/month |

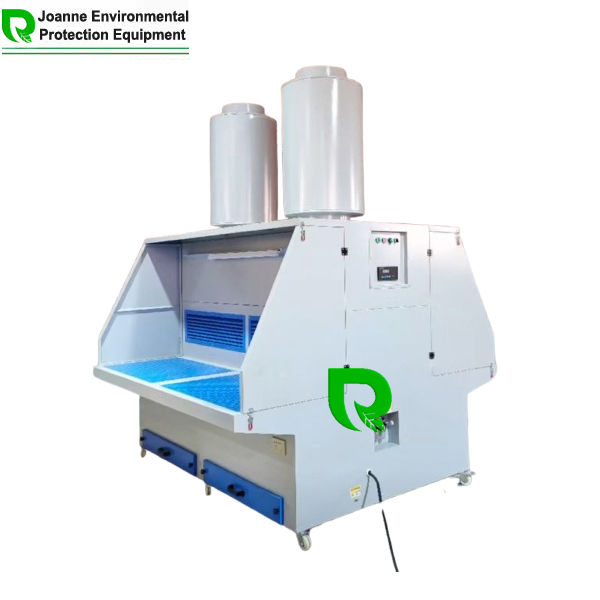

Downdraft Table Industry Metal Polishing , Workshop Down Draft Bench , Downdraft Workstation Explosion-Proof For Precise And Safe Extraction
Downdraft tables play a crucial role in the grinding and polishing processes across a variety of industries. They are particularly beneficial for factories involved in metal processing, such as Foundry steel factory, Steel & Shoot Blasting, Metals & Ironworks Industry, Wood furniture factory, Rubber processing plant, as well as Precious metal & Jewelry making.
These specialized tables are designed to effectively handle the dust generated during the grinding, polishing, and cutting of metals, making them a valuable asset for any metalworking facility.
When utilizing Downdraft tables, you can rest assured that the air quality within your facility will see a significant improvement, leading to a safer and more efficient working environment for your employees.
1. The unique box type side baffle adopts micro strip slit hole design on the inner wall, which can prevent splashing sparks from rebounding and hurting people. The built-in high-efficiency flame-retardant silencing fiber has good sound-absorbing effect. The box type side baffle can be opened according to the shape and length of the workpiece, and the maximum opening angle can reach 180°.
2. Through simulation calculation, the proprietary impeller structure independently developed and the built-in high-efficiency fan ensure the characteristics of high wind pressure, large suction, low noise and low energy consumption. There are suction vents on the bottom and front of the workbench, which can effectively control the dispersion of dust.
3. The whole adopts simulation, fluid dynamics calculation and patented design. The equipment adopts semi closed dust suppression structure, and labyrinth side suction plate can pre separate large particle dust. The bottom suction and side suction air volume can also be reasonably distributed according to the dust splash state. The structural design of the inner channel is more reasonable and the wind pressure loss is small. High dust capture efficiency and no escape.
4. The dust purification room is equipped with a standard filter cartridge, flame-retardant shroud, fire flowers, dust separation, and reduce the direct impact of dust on the filter element, so as to prolong the service life of the filter element (the cumulative service time of the filter element can reach 6000h-8000h). Drawer type dust collecting box, convenient and fast dust removal.
5. The cabinet body sheet metal adopts high-quality high-strength galvanized plate for electrostatic plastic spraying on the surface, multi-layer anti-corrosion and anti rust process, with large plate thickness, high strength, firmness and durability.
6. The integrated electric control panel is equipped with two groups of industrial socket power supply as standard to meet the use of electric tools. Left hand start stop position, safe and convenient operation. The standard automatic back blowing and soot cleaning system has good soot cleaning effect. Three proof lamp lighting, bright working space. There are standard models and explosion-proof models, which can be selected according to different grinding materials.
7. Mature manufacturing skills, Very Fast delivery for customized model:
8. Scientific ergonomic design, large knee space. It can meet the sitting and standing requirements of operators. Humanized design help reduce the work intensity and worker's fatigue.
9. High efficiency nano flame retardant filter element, imported material, high flame retardant grade, truly non spontaneous combustion, anti-explosion and high filtration efficiency.
10. Durable quality high efficiency noise reduction draught fan, low energy required to save your manufacturing cost.
11. Imported double fireproofing filter cartridge, with filter screen, no longer need to replace the filter cartridges frequently(recycle used, service life upto 24 months).
12. Big air flow style is customizable to meet the Sand blasting processing technic with large amount of dust.
Note: It would be very convenient to replace the filter: Hold the cartridge filter by your hands and rotate. Clockwise rotate the cartridge filter to take it down from the table; Anticlockwise rotate the cartridge filter to fasten it on. The filter from replacement can be reused, as long as it can be cleaned thoroughly, you can clean it by using compressed air.
| Material | Steel, Stainless Steel |
| Noise Level | Less Than 70 DB |
| Explosion-proof | Available |
| Assembly Required | No Need |
| Loading Weight | Minimum 300kgs, Customizable |
| Certifications | IAF, ISO, CE(For Motor, Breaker Etc) |
| Air Flow | 1500-8000m3/hour |
| Control | PLC |
| Self cleaning | Automatic Pulse Jet |
| Table Surface | Steel 3mm Thickness |
Polishing/Grinding/Sanding & Cutting.
For Aluminum and other light metal, Plastic fiber and etc, the polishing process will bring static, so an explosion-proof system should be installed.
For Steel, Stone, Wood process, our regular model is good enough for dust extraction.
For Plasma cutting smoke and dust, the table can also be competent.
Daily Dust Cleaning.
Handle the daily cleaning of dust on articles (goods, packing cartons, pallets) in the workshop.
